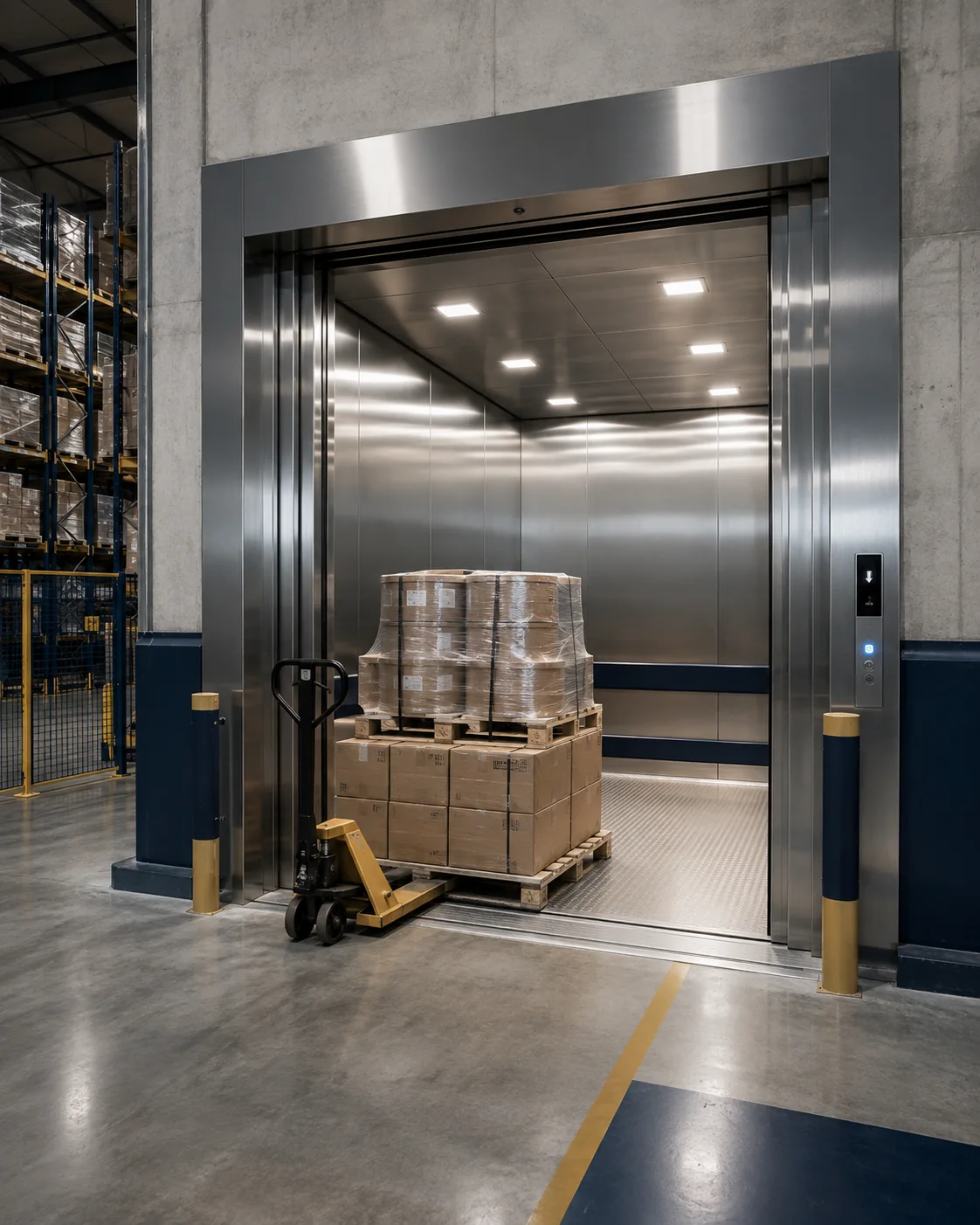

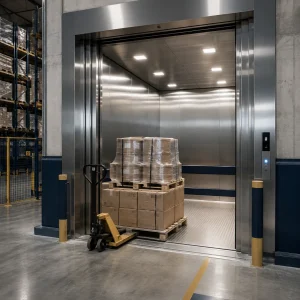

Dependable Goods Movement Designed for Your Operation

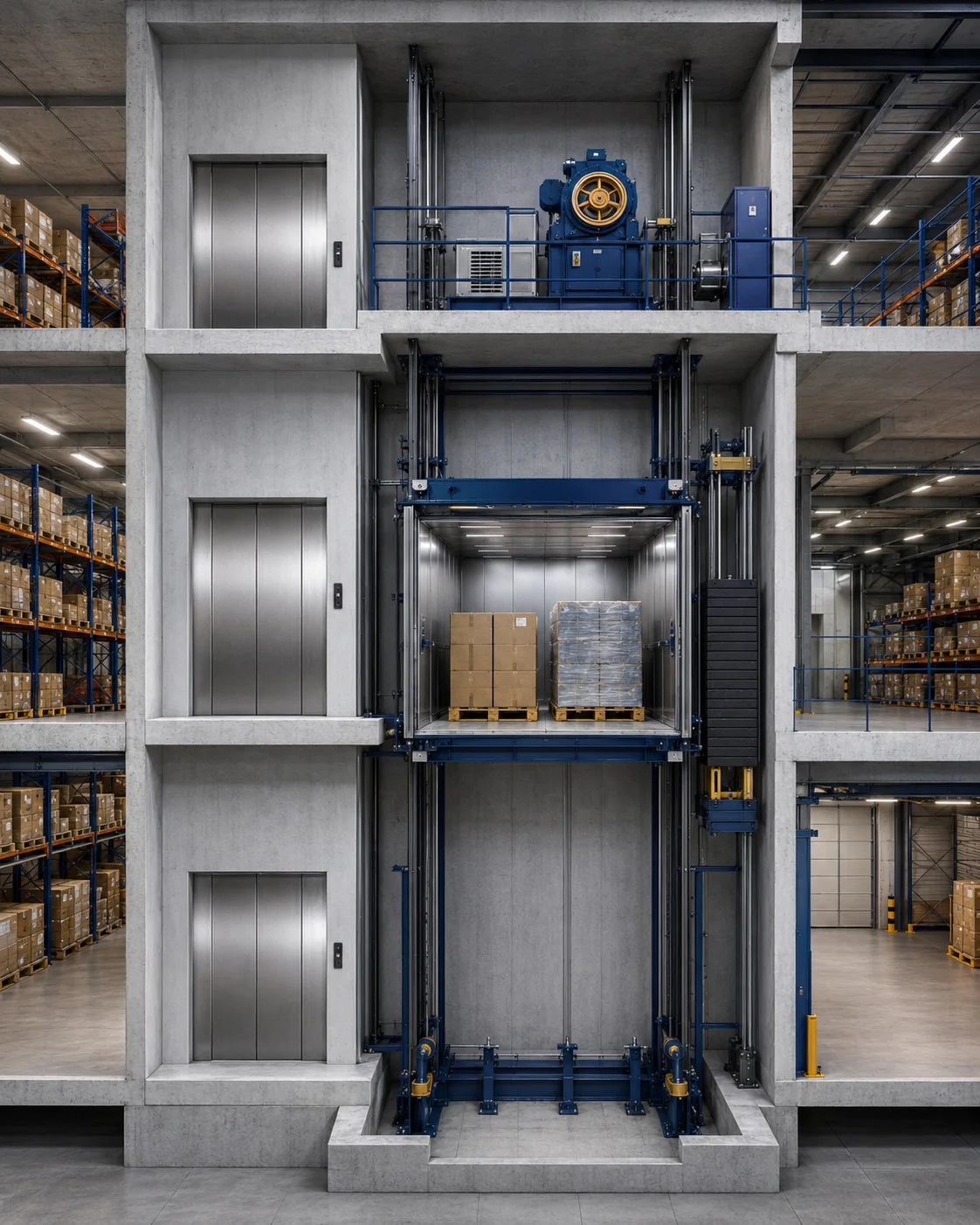

FUJI-HITECH Freight Elevators provide practical vertical transportation
for goods, pallets and industrial materials. From compact service loads to
large warehouse cargo, each configuration is coordinated with the required
capacity, cargo envelope, entrance arrangement and building conditions.
Built for Reliable Material Movement
Broad Capacity Range
Catalogue configurations cover compact 150 kg loads through to large 3,000 kg industrial cargo requirements.

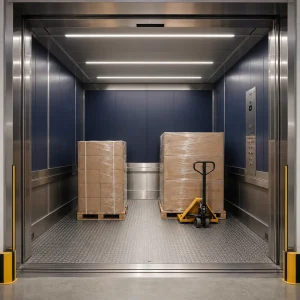

Cargo-Focused Design
Cabin, entrance and platform dimensions can be selected around cartons, trolleys, pallets and operational workflows.
Durable Daily Operation
Robust cabin protection, heavy-duty flooring and project-specific controls support regular material handling.
Configurations for Different Cargo Requirements
Compact Goods Lift
Space-conscious configurations for cartons, stock, small trolleys and lighter service loads.
- Rated loads: 150, 200, 300 and 350 kg
- Rated speeds: 0.3 or 0.5 m/s
- Manual hinged entrance
- Door widths from 700 to 1,000 mm
Medium-Duty Freight Elevator
A practical configuration for larger trolleys, stock movement and commercial or industrial goods.
- Rated load: 1,000 kg
- Rated speed: 0.5 m/s
- 2SO automatic door
- Cabin size: 1,500 x 1,600 mm

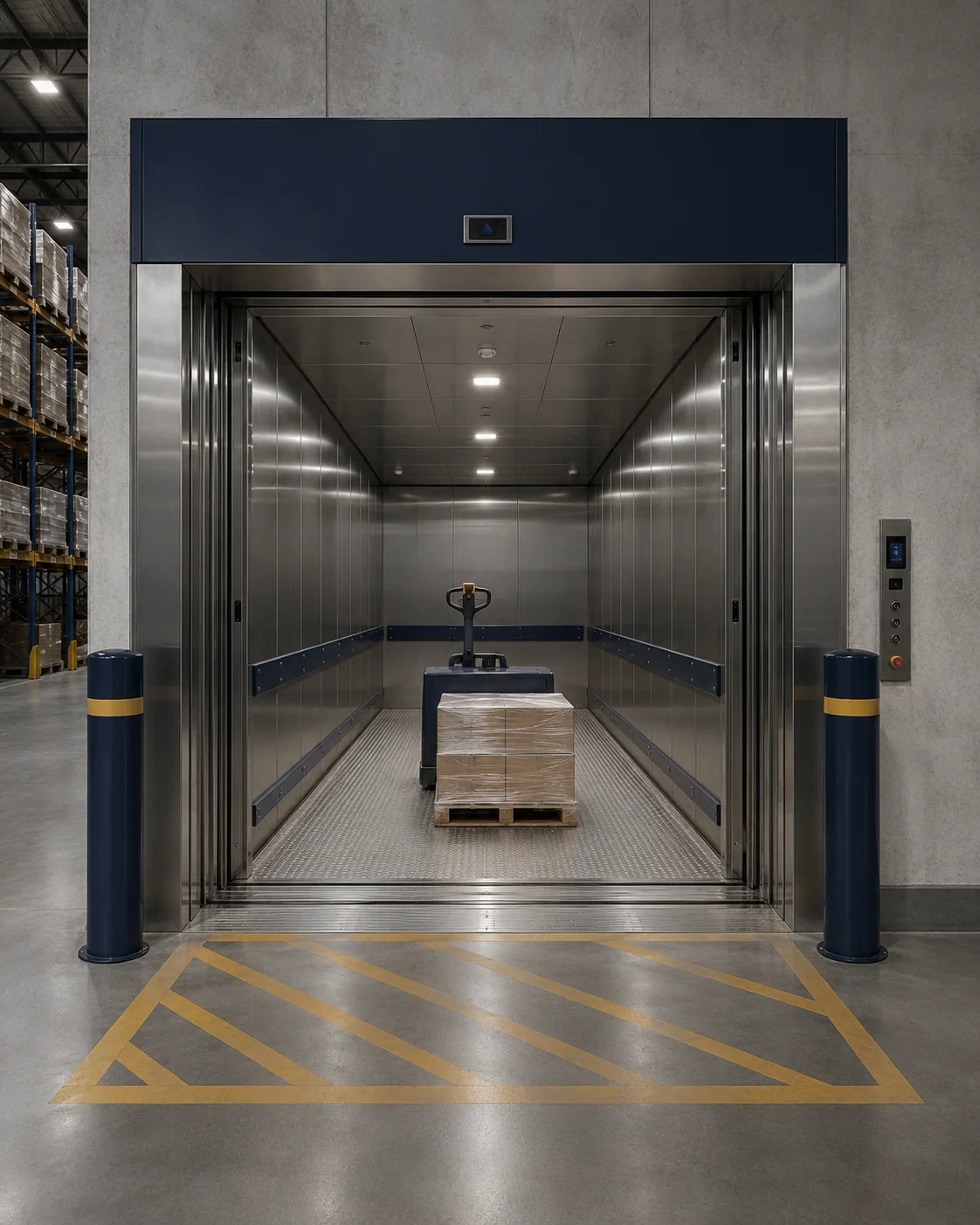

Heavy-Duty Industrial Freight Elevator
Large configurations for palletised materials and demanding warehouse or production workflows.
- Rated loads: 2,000 and 3,000 kg
- Rated speed: 0.5 m/s
- 2SO or 4CO entrances by configuration
- Cabins up to 2,800 x 2,100 mm
Freight Elevator Catalogue Specifications
| Load / speed | Door | Shaft size | Cabin size | Minimum pit | Overhead / machine room |
|---|---|---|---|---|---|
| 150 kg / 0.3 m/s | Manual, 700 x 1,150 mm | 1,050 x 1,100 mm | 700 x 700 mm | 700 mm | 2,650 / 950 mm |
| 200 kg / 0.3 m/s | Manual, 800 x 1,150 mm | 1,150 x 1,200 mm | 800 x 800 mm | 700 mm | 2,700 / 1,000 mm |
| 300 kg / 0.5 m/s | Manual, 900 x 2,000 mm | 1,450 x 1,400 mm | 1,050 x 850 mm | 800 mm | 3,300 / 1,200 mm |
| 350 kg / 0.5 m/s | Manual, 1,000 x 2,000 mm | 1,600 x 1,550 mm | 1,200 x 1,000 mm | 800 mm | 3,300 / 1,200 mm |
| 1,000 kg / 0.5 m/s | 2SO, 1,200 x 2,100 mm | 2,200 x 2,150 mm | 1,500 x 1,600 mm | 1,400 mm | 4,000 / 1,800 mm |
| 2,000 kg / 0.5 m/s | 2SO or 4CO, 1,200 x 2,100 mm | 2,200 x 3,100 mm | 1,700 x 2,400 mm | 1,500 mm | 4,200 / 2,200 mm |
| 2,000 kg / 0.5 m/s | 4CO, 1,300 x 2,100 mm | 2,300 x 3,000 mm | 1,800 x 2,300 mm | 1,500 mm | 4,200 / 2,200 mm |
| 2,000 kg / 0.5 m/s | 4CO, 1,400 x 2,100 mm | 2,400 x 2,900 mm | 1,900 x 2,200 mm | 1,500 mm | 4,200 / 2,200 mm |
| 2,000 kg / 0.5 m/s | 4CO, 1,500 x 2,100 mm | 2,500 x 2,800 mm | 2,000 x 2,100 mm | 1,500 mm | 4,200 / 2,200 mm |
| 2,000 kg / 0.5 m/s | 4CO, 1,500 x 2,100 mm | 2,600 x 2,700 mm | 2,100 x 2,000 mm | 1,500 mm | 4,200 / 2,200 mm |
| 3,000 kg / 0.5 m/s | 4CO, 1,500 x 2,400 mm | 2,600 x 3,700 mm | 2,000 x 3,000 mm | 1,500 mm | 4,500 / 2,500 mm |
| 3,000 kg / 0.5 m/s | 4CO, 1,600 x 2,400 mm | 2,800 x 3,400 mm | 2,200 x 2,700 mm | 1,500 mm | 4,500 / 2,500 mm |
| 3,000 kg / 0.5 m/s | 4CO, 1,800 x 2,400 mm | 3,000 x 3,200 mm | 2,400 x 2,500 mm | 1,500 mm | 4,500 / 2,500 mm |
| 3,000 kg / 0.5 m/s | 4CO, 1,900 x 2,400 mm | 3,200 x 3,000 mm | 2,600 x 2,300 mm | 1,500 mm | 4,500 / 2,500 mm |
| 3,000 kg / 0.5 m/s | 4CO, 2,000 x 2,400 mm | 3,400 x 2,800 mm | 2,800 x 2,100 mm | 1,500 mm | 4,500 / 2,500 mm |
Engineering note: Dimensions are catalogue reference values
in millimetres. The selected configuration must be checked against the cargo
weight, trolley or pallet dimensions, loading method, entrance arrangement,
building structure and applicable project standards. If the required size is
not listed, the catalogue states that it may be designed according to the
building size.
Functions Supporting Controlled Cargo Movement
Prevents travel unless the cabin and landing entrances are correctly secured.
Provides a warning and prevents movement until excessive cargo is removed.
Applicable automatic-door configurations can detect obstructions during closing.
Maintains cabin illumination when the normal electrical supply is interrupted.
Supports communication from the cabin when an operator requires assistance.
Selected controls may provide a project-specified response during power failure.

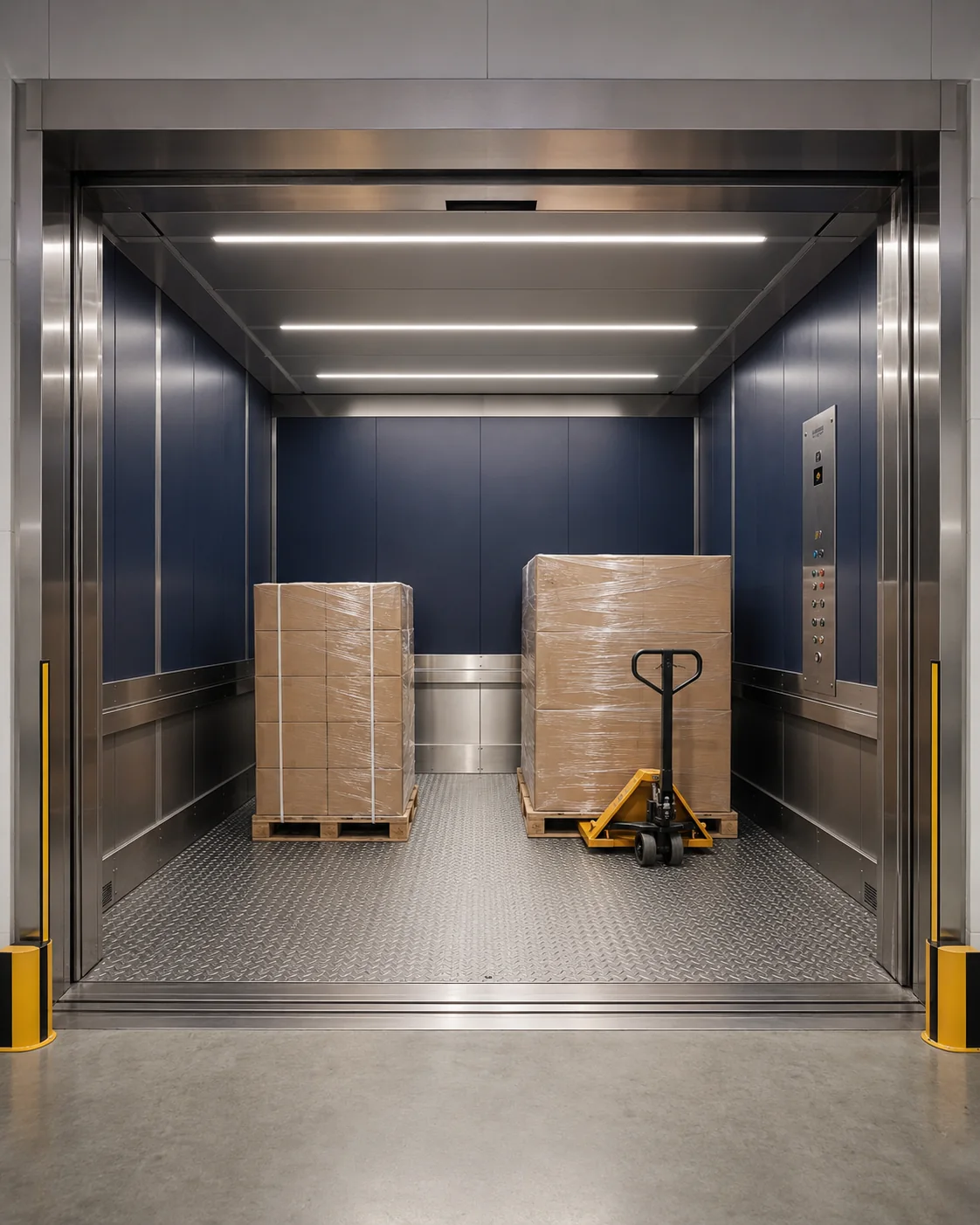

Project-selected heavy-duty flooring supports regular trolley and pallet handling.
Cabin protection rails help reduce damage during loading and unloading operations.
*Availability depends on the selected door and control configuration.
Durable Details for Industrial Use
Material Handling Designed Around the Operation
- Warehouses and logistics facilities
- Factories and production buildings
- Distribution and fulfilment centres
- Retail and stockroom facilities
- Hotels and commercial kitchens
- Industrial modernisation projects
